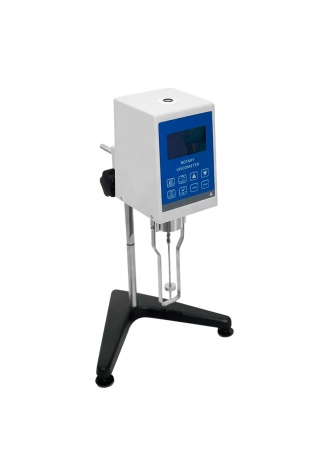

Digital Laboratory Viscometer ME-LVDV-2T
Product Description:
Digital Laboratory Viscosity Meter
ME-LVDV-2T Touch Screen Viscometer ( With CE certificate )
Widely used to measure viscosity of liquids in these industries:
– paint
– cosmetics
– ink
– pulp
– food
– oil
– starch
– solvent adhesive
– latex
– biochemical products
– other high viscosity industries.
Product Parameters:
Digital Laboratory Viscosity Meter
|
Model
|
ME-LVDV-2T
|
|
Speed(r/min)
|
0.3–100 infinitely variable speed , a total of 998 speed options
|
|
Measuring Range
|
Rotor 1-4: 10–6,000,000 mPa.s
ULR: 1-6000 Rotor 18: 1.5 – 300,000 Rotor 25: 240 – 4.8,000,000 Rotor 31: 15 – 300,000 Rotor 34: 30 – 600,000 |
|
Rotor
|
L1 – L4 (Standard)
Enhanced ultra-low viscosity adapter ULR (optional) Small sample adapters (rotors 18,25,31,34)(optional)） |
|
Sample Dosage
|
Rotor 1- 4: 300 – 400ml
ULR: 21ml Rotor 18：7ml Rotor 25: 9ml Rotor 31: 10.5ml Rotor 34:11ml ( K = 1000; M = 1000000 )
|
|
Measurement Error
|
±1% (Newtonian liquid)
|
|
Repetitive Error
|
±0.5% (Newtonian liquid)
|
|
Data output Interface
|
RS232*2pcs, temperature probe interface*1pc
|
|
Power
|
110V ~240V , 50Hz / 60Hz
|
|
Packing Size and weight
|
350 *350 *450mm & 7kg
|
|
Standard Accessory
|
Main machine, bracket and the base, rotor L1,L2,L3,L4, rotor protection frame, power adapter.
|
|
Optional Accessory
|
Supper Ultra-low viscosity adapter ULR rotor, temperature sensor, thermostat bath, thermostat cup,
printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc. |
