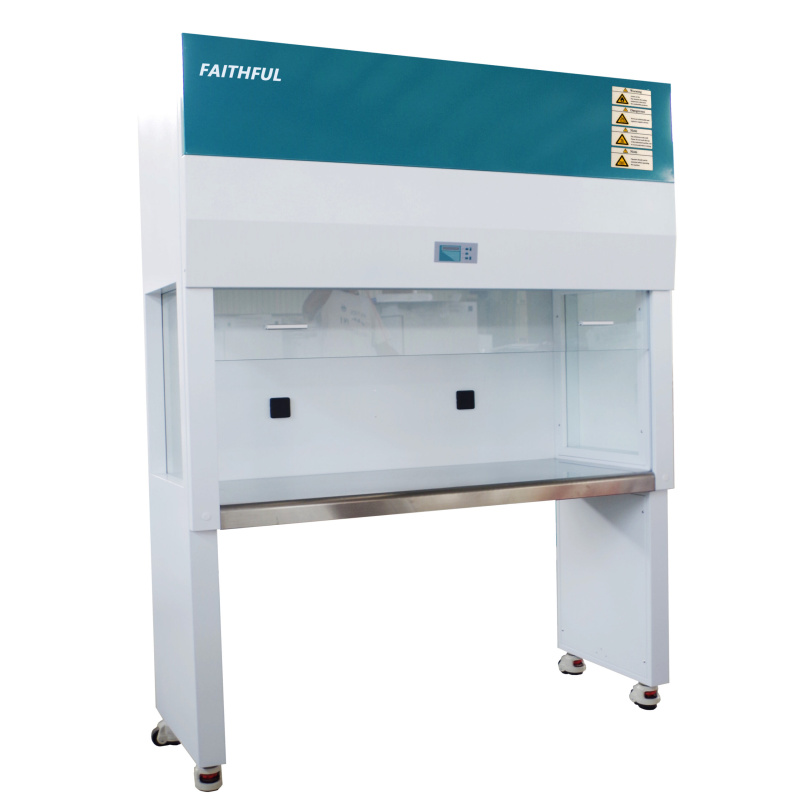

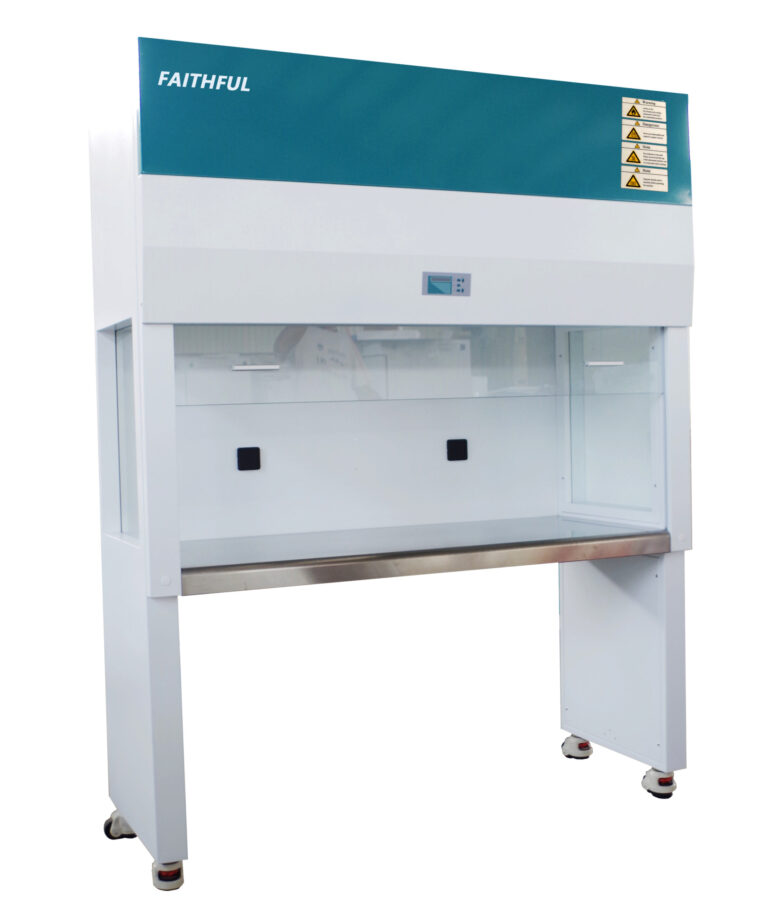

Laboratory Vertical Type Laminar Air Hood Flow Cabinet
Vertical Laminar Air Hood Flow Cabinet: Laminar Flows are part of laboratory clean benches.A clean bench is an enclosed workbench that is controlled to a certain air cleanliness level to prevent contamination such as dust, dirt, and airborne microorganisms. They are mainly used in medical research, hospital/clinical trials, university science labs, microbiology labs, agriculture and veterinary labs etc.
Lead Time: 4-6 Weeks
Uses:
This device is widely used to provide partial cleaning work environment in the school laboratory, food processing, biochemistry, agriculture and etc.
Characteristics:
1. Vertical laminar flow, with SUS 304 stainless steel bench board, effectively prevents external air into the cleaning work environment.
2. High quality low noise centrifugal fan ensures the stable speed. Touch type air flow control system, the five sections wind speed control, adjustable speed 0.2-0.6m/s (initial:0.6m/s; final:0.2m/s)
3. High quality filter ensures dust can be filtered more than 0.3um.
4. UV lamps and lighting control independently.
Optional separating laminar flow cabinet
Main Technical Parameters:
| Model | |||||
|
Applicable Station |
two persons one side | ||||
| Airflow Direction | Vertical | ||||
| Function | Cleanliness | Class 100 | |||
| Collection Efficiency | ≥99.9% of 0.5um particle | ||||
| Colony Count | ≤0.5/vessel (petri dish is φ90mm ) | ||||
| Wind Speed | initial:0.6(m/s),final:0.2 (m/s) | ||||
| Wind Speed Range | 0.2-0.6 (m/s) | ||||
| Noise Level | ≤62db | ||||
| Vibration Semi-Peak Value | ≤3um | ||||
| Illumination Intensity (Lx) | ≥300LX(Activity Center) | ||||
| Work Surface Bearing | 50kg | ||||
| Composition | Inner Chamber | Stainless steel plate | |||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
| Operation door | Tempered Glass | ||||
| HEPA Filter (mm) | 610*610*50 two pieces | ||||
| Pre-Filter (mm) | 520*490*5 two pieces | ||||
| Fluorescent Lamp | 30W*1 | ||||
| UV Lamp | 30W*1 | ||||
| Top Fan | 300W two pieces | ||||
| Controller | Display | LED | |||
| Wind Speed Control | Intelligent multi-level adjustable | ||||
| Additional Function | The bottom horizontal adjustment, one key to open and close lighting sterilization | ||||
| Specification | Inner Size (W*L*H)(mm) | 1310*790*550 | |||
| Exterior Size (W*L*H)(mm) | 1487*788*1690 | ||||
| Packing Size (W*L*H)(mm) | 1655*960*1840 | ||||
| Max Power | 0.8kW | ||||
| Current Rating (50/60Hz) | AC220V/3.6A | ||||
| NW/GW kg | 200/305 | ||||
