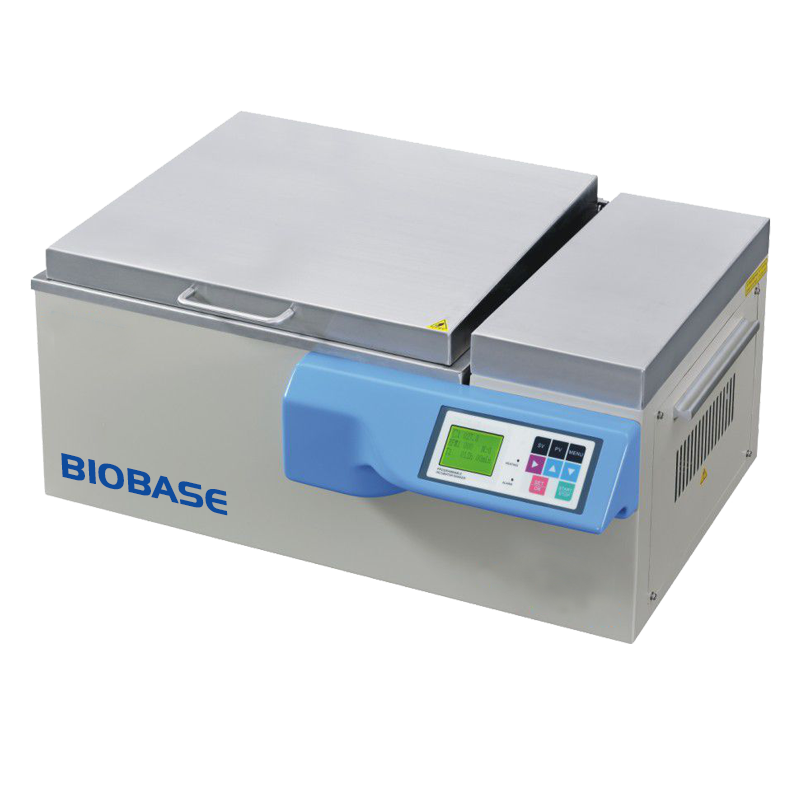

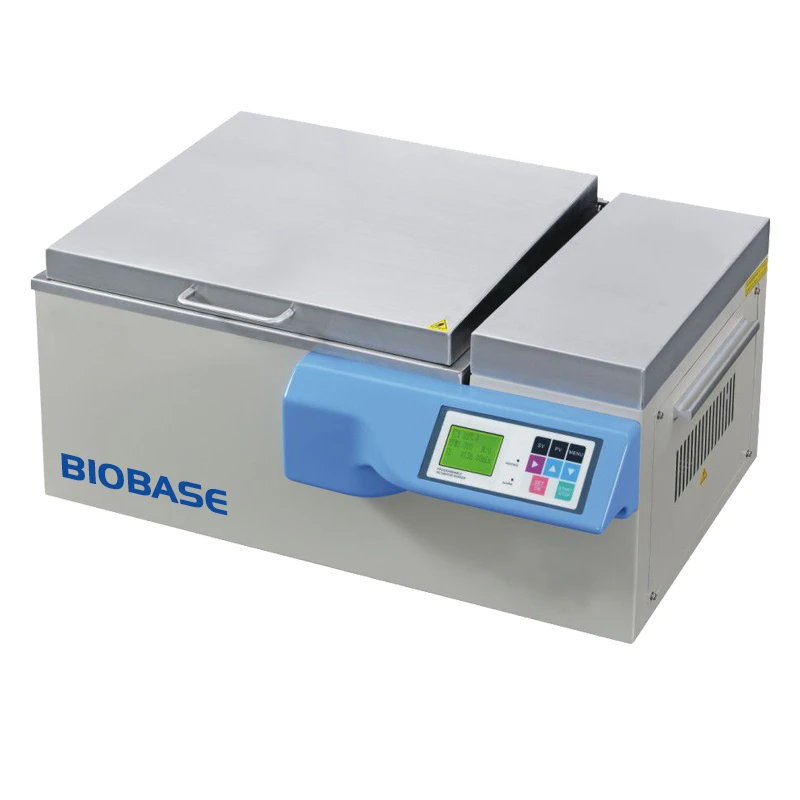

Shaking Water Bath SWB-110X24 (table-top)
Lead Time: 4-6 weeks
Shaking Water Bath, or water bath shakers, are ideal for mixing or agitating samples while immersed in water at a defined and controlled temperature.
- In contrast to air-based incubators, water baths are able to transfer heat more rapidly and efficiently.
Features:
1. Power off recovery function.
2. Audio and visual alarm.
3. Stainless steel lid, prevent heat loss and evaporation.
4. Double over-temperature protection design. Anti dry-out function.
Technical Parameters:
| Model | SWB-110X12 (table-top) | SWB-110X24(table-top) | SWB-110X48(floor-type) | ||
| Control | PID | ||||
| Display | LCD | ||||
| Shaking Mode | Reciprocating shaking | ||||
| Drive Mode | Balancing drive | ||||
| Shaking Speed | 20~200rpm | ||||
| Shaking Accuracy | ±1 rpm | ||||
| Vibration Range | Φ25mm | ||||
| Standard Capacity | Universal spring clamp | 250ml *24 | 250ml *48 | ||
| Max. Capacity | 250ml *12 or
500ml*8 or 1000ml*6 |
250ml *24 or 500ml*15 or 1000ml*8 | 250ml *48 or
500ml*30 or 1000ml*20 |
||
| Shaking Plate Size | 430*320mm | 590*390mm | 780*586mm | ||
| Spring Shaking Plate Size | 430*320*60mm | 590*390*80mm | 780*586*80mm | ||
| Timing Range | 0~500 hours | ||||
| Temp. Range | RT+5℃~99.9℃ | ||||
| Temp. Accuracy | ±0.2℃ | ||||
| Temp. Uniformity | ±0.1℃ | ||||
| External Material | 316 stainless steel | ||||
| Safety Function | Audio and visual alarm for over-temperature;
Alarm for over-speed; Detached over-temperature protector; Shutdown protection for door opening; Leakage or overcurrent protection. |
||||
| Consumption | 2000W | 2200W | 4000W | ||
| Power Supply | AC110V/220V±10%,50/60HZ | ||||
| Internal Size(W*D*H) (mm) | 510*380*240 | 700*455*260 | 940*660*275 | ||
| External Size(W*D*H) (mm) | 760*420*370 | 945*495*408 | 1240*700*760 | ||
| Package Size(W*D*H) (mm) | 810*470*470 | 995*545*508 | 1740*750*860 | ||
| Gross Weight(kg) | 65 | 120 | 160 | ||
