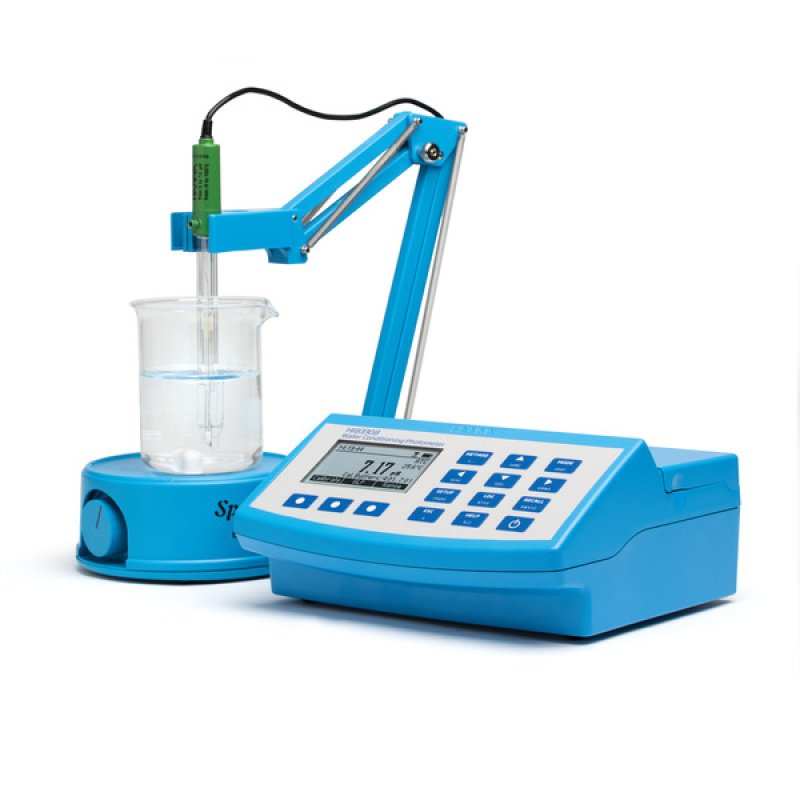

Multiparameter Photometer & pH Meter for Water Conditioning- HI83308-02
HI83308 is a compact, multiparameter photometer for use in water conditioning applications.
The meter is one of the most advanced photometers available with a innovative optical design that utilizes a reference detector and focusing lens to eliminate errors from changes in the light source and from imperfections in the glass cuvette.
This meter has 23 different programmed methods measuring 15 key water quality parameters and also offers an absorbance measurement mode for performance verification and for users that would like to develop their own concentration versus absorbance curves. Water conditioning parameters include fluoride, chlorine, ammonia, manganese, copper, iron, silver and zinc.
To save valuable laboratory benchtop space, the HI83308 doubles as a professional pH meter with its digital pH/temperature electrode input. Now one meter can be used for both photometric and pH measurements.
| pH Range | Photometer: 6.5 to 8.5 pH pH electrode: -2.00 to 16.00 pH |
|---|---|
| pH Resolution | Photometer: 0.1 pH pH electrode: 0.01 pH |
| pH Accuracy | Photometer: ±0.1 pH pH electrode: ±0.01 pH |
| pH Calibration | Automatic one or two point calibration with one set of standard buffers available (4.01, 6.86, 7.01, 9.18, 10.01) |
| pH Temperature Compensation | Automatic (-5.0 to 100.0 oC; 23.0 to 212.0 oF); limits reduced based on the pH electrode used |
| pH CAL Check (electrode diagnostics) | clean electrode and check buffer/check probe displayed during calibration |
| pH Method | Photometer: phenol red |
| pH-mV Range | ±1000 mV |
| pH-mV Resolution | 0.1 mV |
| pH-mV Accuracy | ±0.2 mV |
Oxygen, Dissolved
| Oxygen, Dissolved Range | 0.0 to 10.0 mg/L (as O2) |
|---|---|
| Oxygen, Dissolved Resolution | 0.1 mg/L |
| Oxygen, Dissolved Accuracy | ±0.4 mg/L ±3% of reading |
| Oxygen, Dissolved Method | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method |
Absorbance
| Absorbance Range | 0.000 to 4.000 Abs |
|---|---|
| Absorbance Resolution | 0.001 Abs |
| Absorbance Accuracy | +/-0.003Abs @ 1.000 Abs |
Ammonia
| Ammonia Range | Low Range: 0.00 to 3.00 mg/L Medium Range: 0.00 to 10.00 mg/L High Range: 0.0 to 100.0 mg/L (all as NH3-N) |
|---|---|
| Ammonia Resolution | 0.01 mg/L; 0.1 mg/L |
| Ammonia Accuracy | Low Range: ±0.04 mg/L ±4% of reading Medium Range: ±0.05 mg/L ±5% of reading High range: ±0.5 mg/L ±5% of reading |
| Ammonia Method | Adaptation of the ASTM Manual of Water and Environmental Technology, D1426-92, Nessler method |
Chlorine
| Free Chlorine Range | 0.00 to 5.00 mg/L (as Cl2) |
|---|---|
| Free Chlorine Resolution | 0.01 mg/L |
| Free Chlorine Accuracy | ±0.03 mg/L ±3% of reading |
| Total Chlorine Range | 0.00 to 5.00 mg/L (as Cl2) |
| Total Chlorine Resolution | 0.01 mg/L |
| Total Chlorine Accuracy | ±0.03 mg/L ±3% of reading |
| Chlorine Method | Adaptation of the EPA 330.5 DPD method |
Copper
| Copper Range | Low Range: 0.000 to 1.500 mg/L (as Cu2+) High range: 0.00 to 5.00 mg/L (as Cu2+) |
|---|---|
| Copper Resolution | 0.001 mg/L; 0.01 mg/L |
| Copper Accuracy | Low Range: ±0.01 mg/L ±5% of reading High Range ±0.02 mg/L ±4% of reading |
| Copper Method | Adaptation of the EPA bicinchoninate method |
Fluoride
| Fluoride Range | 0.00 to 2.00 mg/L (as F-) |
|---|---|
| Fluoride Resolution | 0.01 mg/L |
| Fluoride Accuracy | ±0.03 mg/L ±3% of reading |
| Fluoride Method | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, SPADNS method |
Iron
| Iron Range | Low Range: 0.000 to 1.600 mg/L (as Fe) High Range: 0.00 to 5.00 mg/L (as Fe) |
|---|---|
| Iron Resolution | 0.001 mg/L; 0.01 mg/L |
| Iron Accuracy | Low Range: ±0.01 mg/L ±8% of reading High Range: ±0.04 mg/L ±2% of reading |
| Iron Method | Low Range: Adaptation of the TPTZ Method High Range: Adaptation of the EPA Phenanthroline method 315B, for natural and treated waters |
Manganese
| Manganese Range | Low Range: 0 to 300 ?g/L (as Mn) High Range: 0.0 to 20.0 (as Mn) |
|---|---|
| Manganese Resolution | 1 ?g/L; 0.1 mg/L |
| Manganese Accuracy | Low Range: ±10 ?g/L ±3% of reading High Range: ±0.2 mg/L ±3% of reading |
| Manganese Method | Low Range: Adaptation of the PAN Method High Range: Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Periodate method |
Molybdenum
| Molybdenum Range | 0.0 to 40.0 mg/L (as Mo6+) |
|---|---|
| Molybdenum Resolution | 0.1 mg/L |
| Molybdenum Accuracy | ±0.3 mg/L ±5% of reading |
| Molybdenum Method | Adaptation of the mercaptoacetic acid method |
Nickel
| Nickel Range | Low Range: 0.000 to 1.000 mg/L (as Ni) High Range: 0.00 to 7.00 g/L (as Ni) |
|---|---|
| Nickel Resolution | 0.001 mg/L; 0.01 g/L |
| Nickel Accuracy | Low range: ±0.010 mg/L ±7% of reading High Range: ±0.07 g/L ±4% of reading |
| Nickel Method | Low Range: Adaptation of the PAN method High Range: Adaptation of the photometric method |
Nitrate
| Nitrate Range | 0.0 to 30.0 mg/L (as NO3– N) |
|---|---|
| Nitrate Resolution | 0.1 mg/L |
| Nitrate Accuracy | ±0.5 mg/L ±10% of reading |
| Nitrate Method | Adaptation of the cadmium reduction method |
Phosphate
| Phosphate Range | Freshwater Low Range: 0.00 to 2.50 mg/L (as PO43-) High range: 0.0 to 30.0 mg/L(as PO43-) |
|---|---|
| Phosphate Resolution | 0.01 mg/L; 0.1 mg/L |
| Phosphate Accuracy | Low Range: ±0.04 mg/L ±4% of reading High Range: ±1 mg/L ±4% of reading |
| Phosphate Method | Low Range: Adaptation of the Ascorbic Acid method High Range: Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Amino Acid method |
Silica
| Silica Range | 0.00 to 2.00 mg/L (as SiO2) |
|---|---|
| Silica Resolution | 0.01 mg/L |
| Silica Accuracy | ±0.03 mg/L ±3% of reading |
| Silica Method | Adaptation of the ASTM Manual of Water and Environmental Technology, D859, Heteropoly Molybdenum Blue method |
Silver
| Silver Range | 0.000 to 1.000 mg/L (as Ag) |
|---|---|
| Silver Resolution | 0.001 mg/L |
| Silver Accuracy | ±0.020 mg/L ±5% of reading |
| Silver Method | Adaptation of the PAN method |
Zinc
| Zinc Range | 0.00 to 3.00 mg/L (as Zn) |
|---|---|
| Zinc Resolution | 0.01 mg/L |
| Zinc Accuracy | ±0.03 mg/L ±3% of reading |
| Zinc Method | Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Zincon method |
General Meter
| Input Channels | 1 pH electrode input and 4 photometer wavelengths |
|---|---|
| pH Electrode | digital pH electrode (not included) |
| Logging Type | log on demand with user name and sample ID optional input |
| Logging Memory | 1000 readings |
| Connectivity | USB-A host for flash drive; micro-USB-B for power and computer connectivity |
| GLP | calibration data for connected pH electrode |
| Display | 128 x 64 pixel LCD with backlight |
| Battery Type / Life | 3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement |
| Power Supply | 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included) |
| Environment | 0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing |
| Dimensions | 206 x 177 x 97 mm (8.1 x 7.0 x 3.8″) |
| Weight | 1.0 kg (2.2 lbs.) |
| Photometer/Colorimeter Light Source | 4 LEDs with 420 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters |
| Photometer/Colorimeter Light Detector | silicon photodetector |
| Bandpass Filter Bandwidth | 8 nm |
| Bandpass Filter Wavelength Accuracy | ±1 nm |
| Cuvette Type | round, 24.6 mm |
| Number of Methods | 128 max. |
| Ordering Information | HI83308 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual. |
