Lead Time: 4-6 Weeks

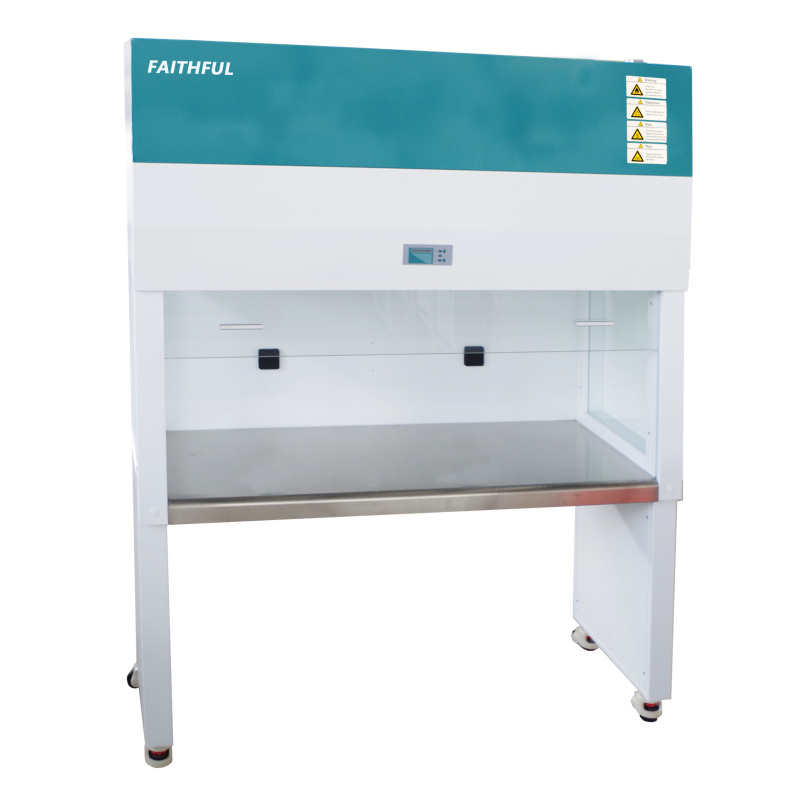

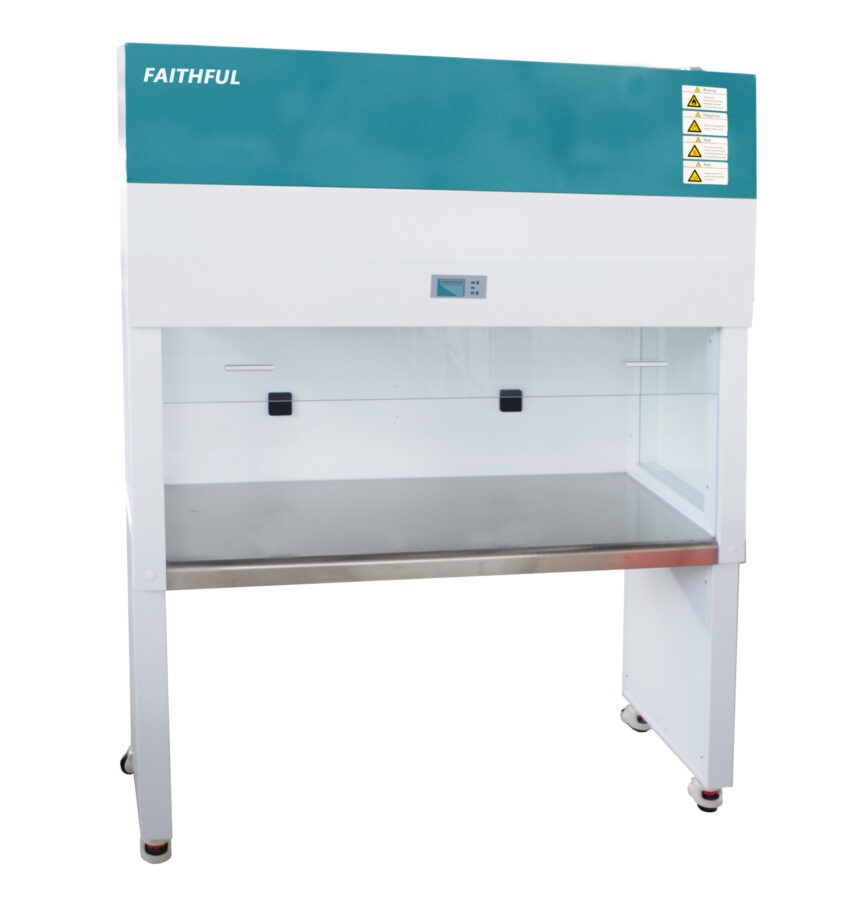

Laminar Flows are part of laboratory clean benches.
A clean bench is an enclosed workbench that is controlled to a certain air cleanliness level to prevent contamination such as dust, dirt, and airborne microorganisms. They are mainly used in medical research, hospital/clinical trials, university science labs, microbiology labs, agriculture and veterinary labs etc.
Characteristics:
1. Vertical laminar flow, with SUS 304 stainless steel bench board, effectively prevents external air into the cleaning work environment.
2. High quality low noise centrifugal fan ensures the stable speed. Touch type air flow control system, the five sections wind speed control, adjustable speed 0.2-0.6m/s (initial:0.6m/s; final:0.2m/s)
3. High quality filter ensures dust can be filtered more than 0.3um.
4. UV lamps and lighting control independently.
Optional separating laminar flow cabinet
Characteristics:
1. Vertical laminar flow; enclosed stainless steel bench board, which effectively prevent air flow and keep operator from pungent odor.
2. Low-noise fan and light touching blowing-rate operational key; adjustable multi-level blowing rate.
3. High-efficient filter of over 0.3um filtering ratio.
Main Technical Parameters:
| Model | CJ-1D | CJ-1S | CJ-2D | CJ-2S |
| Supply Voltage(V) | 220V50Hz | |||
| Cleanliness | 100 grade@≥0.5μm (FBI209E) | |||
| Number of colony | ≤0.5/utensil.time(Φ90mm cultivation utensil) | |||
| Average wind speed | 0.3-0.6M/S(Adjustable) | |||
| Noise | ≤62αB(A) | |||
| Vibration and semi-peak numerical value | ≤3μm | ≤4μm | ||
| Luminance | ≥300LX | |||
| Specifications and quantity
of light tube |
18W×1 20W×2 | 30W×1 30W×1 | 18W×1 20W×2 | |
| Maximum power dissipation | 0.4KW | 0.8KW | ||
| Specification and quantity of(HEPA) | 820×600×50×1 |
610×610×50×2 |
||
| Size of working room(mm) | 880×660×500 | 880×700×500 | 1310×660×500 | 1310×700×500 |
| Outer size(mm) | 1040×725×1610 | 1040×790×1610 | 1490×725×1530 | 1490×725×1610 |
| Overall dimension of packing(mm) | 1220×900×1770 | 1220×950×1870 | 1660×900×1760 | 1660×950×1760 |
| NW(Kg) | 160 | 160 | 200 | 200 |
| GW(Kg) | 225 | 225 | 305 | 305 |
| Operator(s) | One person | One person | Two person | Two Person |
| One side | Two sides | One sides | Two Sides | |
