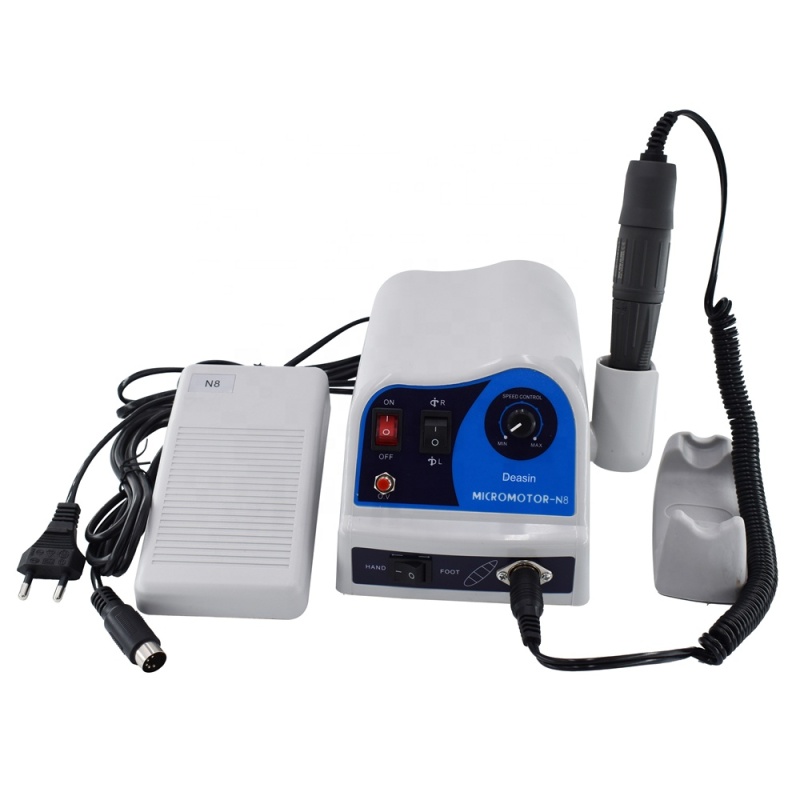

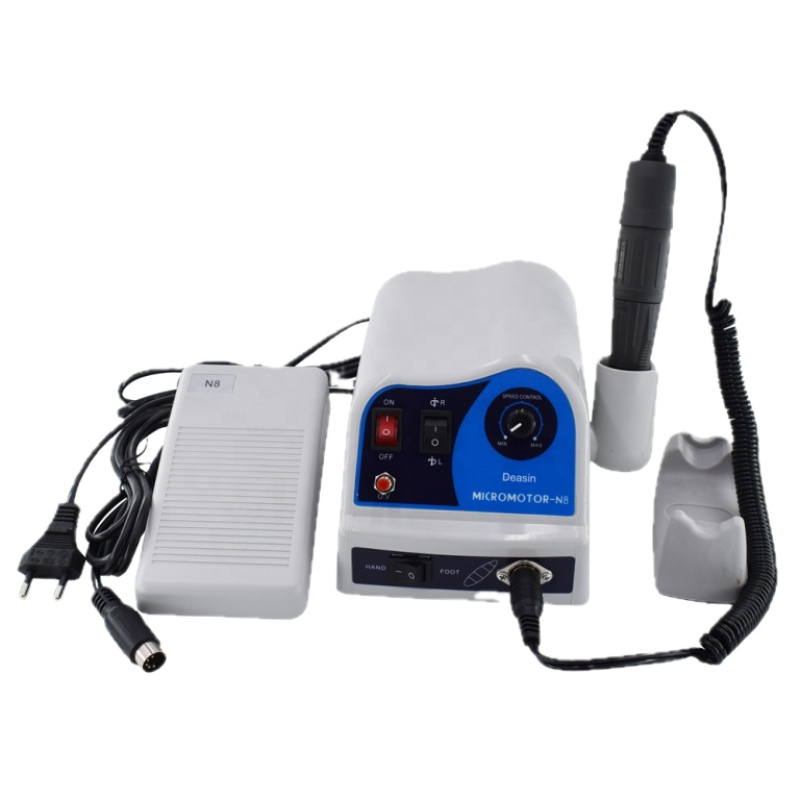

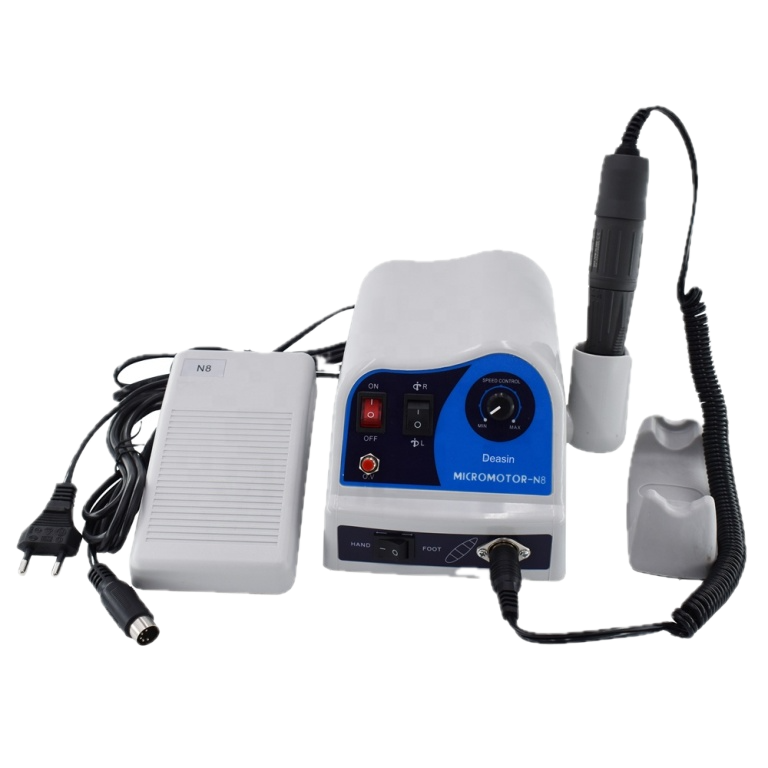

Dental Lab Micromotor For Drilling Polishing
Products Description
Product name
|
Dental Micro Motor
|
Model
|
AS-N8
|
Input Power
|
100/240V
|
Output Power
|
DC 0-30V
|
Frequency
|
50/60Hz
|
Export Markets
|
Global
|
Current Max
|
3A
|
Maximum Speed
|
0-45000rpm/Min
|
Handpiece type
|
Brush less handpiece
|
Handpiece size
|
L158 * 25mm
|
Gross weight
|
3.45KG
|
Controller size
|
W83 * D290 * H240mm
|
Contoller weight
|
2.9 KGS
|
Handpiece weight
|
190 G
|
Maximum torque
|
7.8 N.cm
|
Details Images
Specification
Main Parameters:
Features:
Compact sized control box with precise small & strong micro motor handpiece
Very High-powered and quality 0-45,000rpm
Tips size: 2.35mm
Tool exchange method using cam (twists the handle counter-clock wise to change the bur and can be easily restored back to the
original position)
Non stage speed system (it\’s well designed to output from 0 to 45,000rpm by using non stage speed system)
Right & Left turning ability
Foot ON/OFF switch system (Variable Control system using foot )
Installed special ball bearings for super high speed(less heat and noise)
Dust seal protection for excellent durabilitySpecifications:
Voltage: 220V/50Hz±10%
Power: 100W
Maximum Stall Current: 3A
Motor maximum voltage: DC32V
Speed range 0Â – 45,000 R.P.M
Collet size: 3/32\’\’
Bur size: 2.35mm
Weight: 3.45KG
Features:
Compact sized control box with precise small & strong micro motor handpiece
Very High-powered and quality 0-45,000rpm
Tips size: 2.35mm
Tool exchange method using cam (twists the handle counter-clock wise to change the bur and can be easily restored back to the
original position)
Non stage speed system (it\’s well designed to output from 0 to 45,000rpm by using non stage speed system)
Right & Left turning ability
Foot ON/OFF switch system (Variable Control system using foot )
Installed special ball bearings for super high speed(less heat and noise)
Dust seal protection for excellent durabilitySpecifications:
Voltage: 220V/50Hz±10%
Power: 100W
Maximum Stall Current: 3A
Motor maximum voltage: DC32V
Speed range 0Â – 45,000 R.P.M
Collet size: 3/32\’\’
Bur size: 2.35mm
Weight: 3.45KG
